Impact Door type

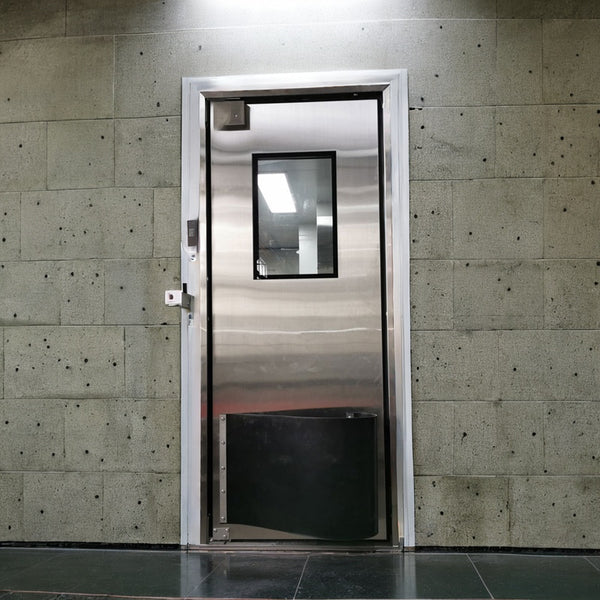

Single Swing Door

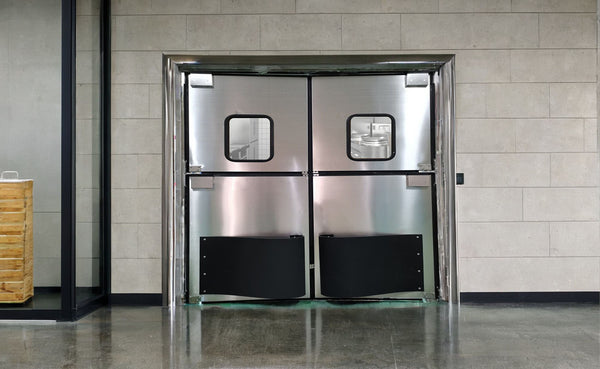

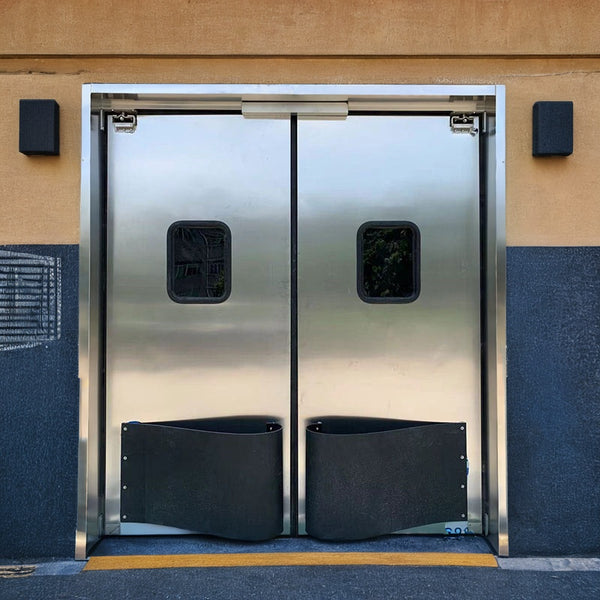

Double Swing Door

Four Swing for stuff transmit

Product Details

Feature Headline

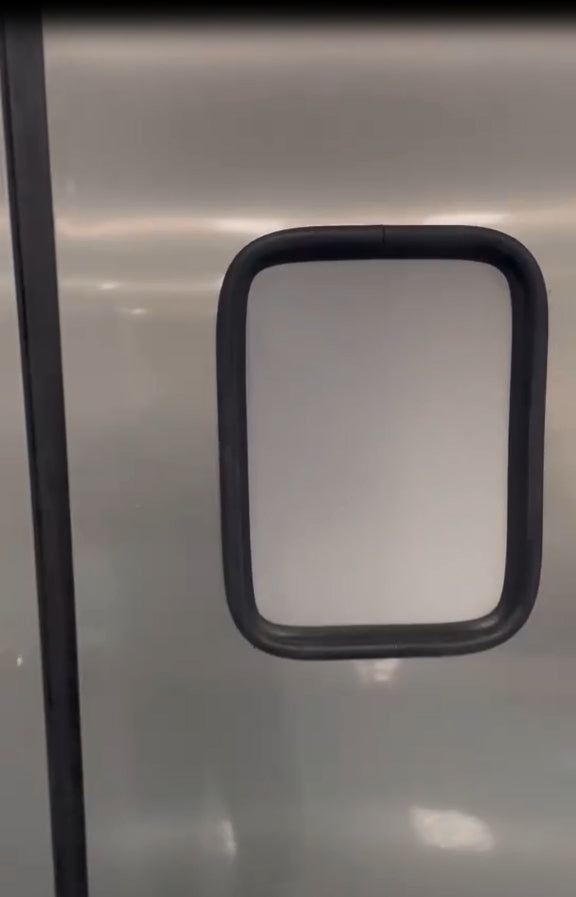

30*40cm acrylic window with 2cm thickness rubber seal.

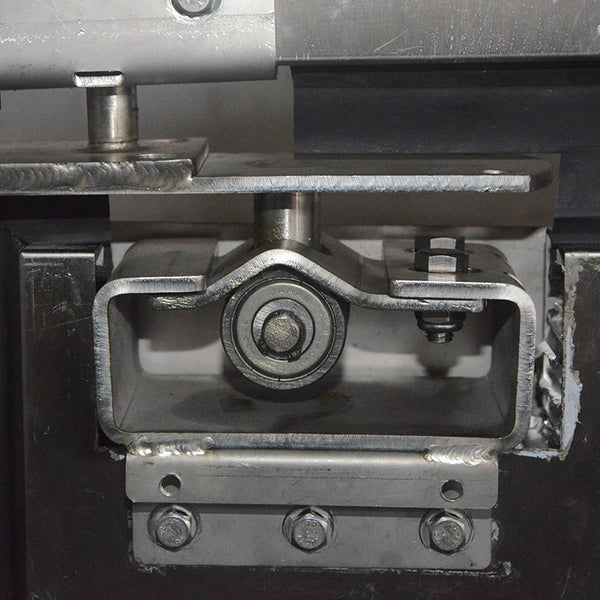

Eccentric shaft chain design

Bidirectional closure in 180 degree, support frequent open & close

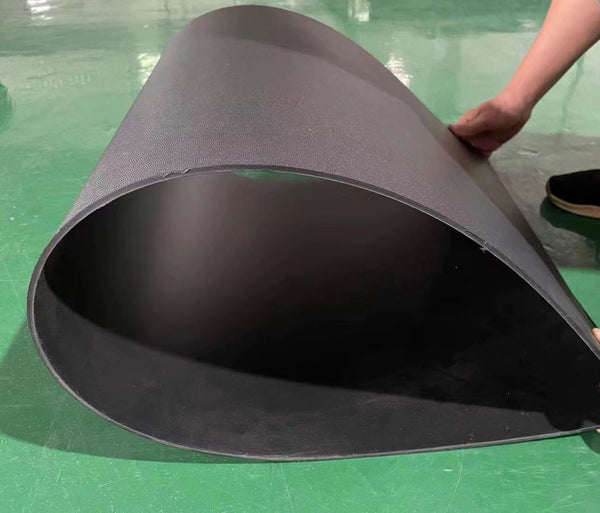

Anti-impact plate

Mixed engineering plastics, with high strength and toughness, formed in one piece.

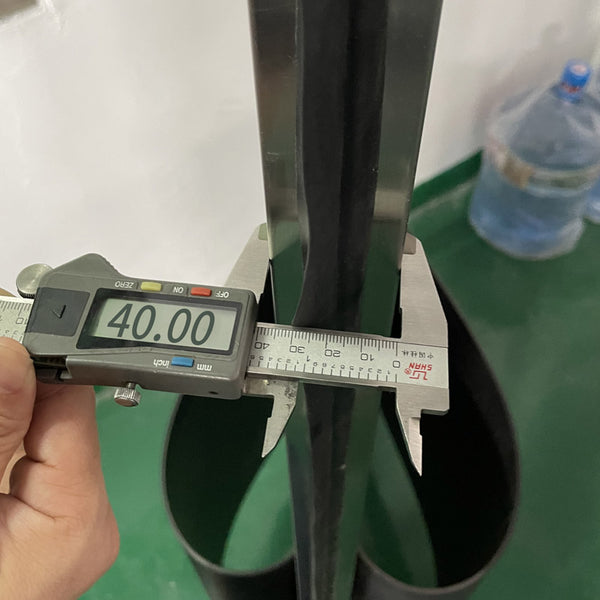

Door panel

40mm thickness, impact resistance, durable, long lasting.

Sheet materials

0.8mm sheet thickness in 304 stainless steel or galvanized steel.

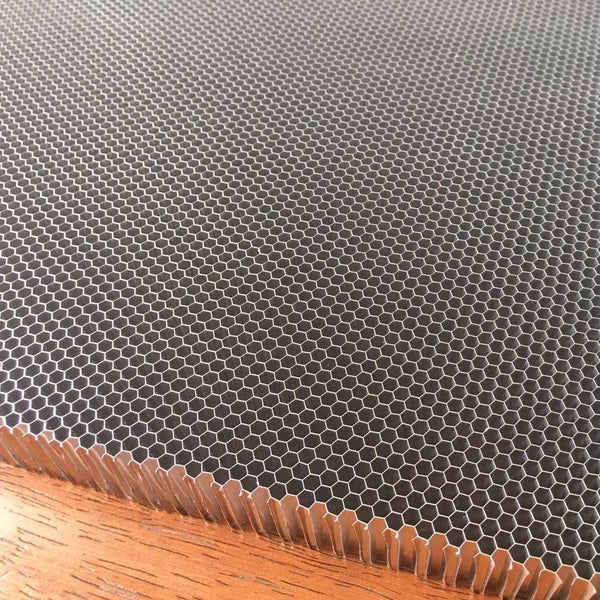

Panel core

Aluminium honeycomb for core, dampproof and durable.

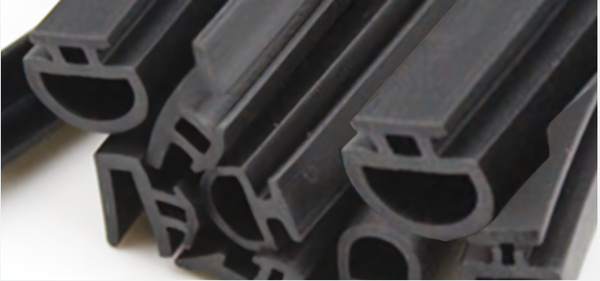

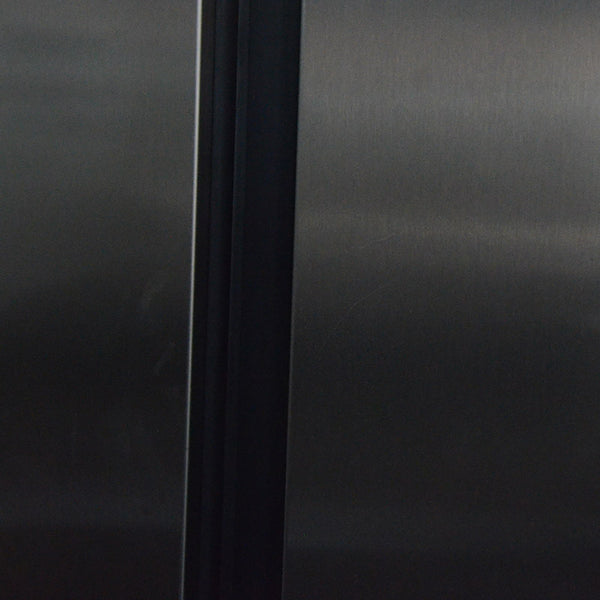

Silicone seal strip

Used around the door body to improve insulation.

Traffic door parameter

Items

Description

 Door Size

Available to fit openings up to 96" * 96"
Hinge

Gravity Hinge System, 180o Open, 5mm Thickness Stainless Steel
Window Standard 12" * 16" Clear acrylic window, black rubber surrounding. Various window configurations.
Door Frame Sheet thickness 1mm
Door Panel 40mm thickness for whole, face sheet 0.8mm in stainless steel.
Panel Core Aluminum Honeycomb
Face Sheet Material Stainless Steel 304#/ 201#/ Galvanized steel
Finish Polished/ Spray painting
Seal 2cm thickness full perimeter gasketing
Colors Stainless steel original / customized
Feature Thermal and sound insulation

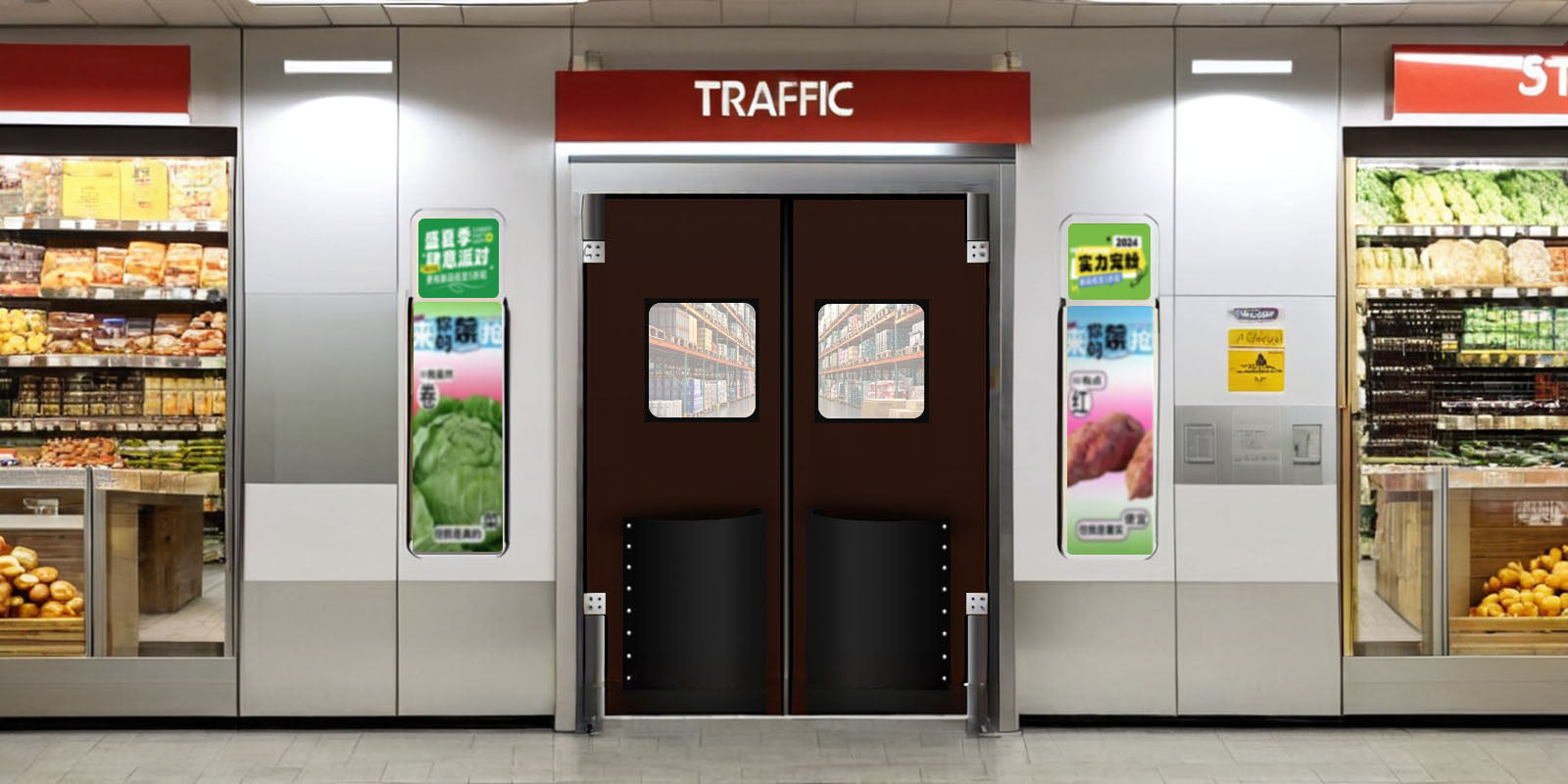

Applications Kitchen , Hotel , Supermarket, Shipping Mall and so on
